Model AT-309 Jet with HP Bearing

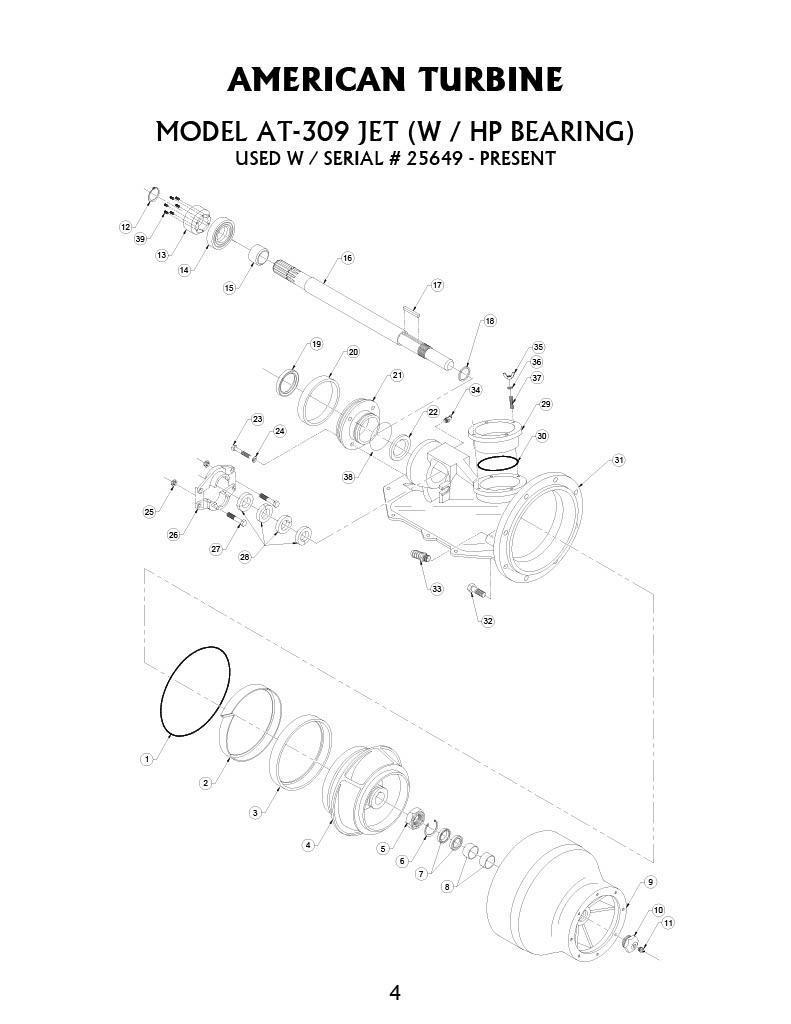

Model AT-309 Jet with HP Bearing Parts Breakdown



Availability: Parts Diagram
Product Code: AT-309
Qty:

Description


American Turbine Model 309 Jet Drive with the HP Bearing (Serial # 25649 to Present)
SYM.DescriptionQTY.Part Number
(1)Bowl O-Ring1
# O3101
(2)Wear Ring Liner1
# WR6004
(3)Wear Ring Bronze
1
# WR5000
(3)Wear Ring Stainless Steel
1
# WR5000SS
(4)Impeller1
# IMA***
(5)Impeller Nut1
# SH3507
(6)Bowl Snap Ring1
# SC9201
(7)Bowl Seal2
# SL2003
(8)Bowl Bearing2
# B1502
(9)Bowl1
# SCA9301
(10)Bowl Plug With Zert
1
# SC9001
(11)Grease Zert1
# SC8901
(12)Snap Ring1
# SH1507
(13)Bearing Pre-Load Seal Ring1
# SH5005
(14)Thrust Bearing1
# B1107
(15)Slinger Ring1
# SH2507
(16)Shaft1
# SH1107
(17)
Impeller Key1
# SH3007
(18)Shim Kit1
# SHK4007
(19)Bearing Cap Seal1
# SL1001
(20)Engine Mount Ring1
# SC4007
(21)Bearing Cap1
# SC2107
(22)Suction Seal1
# SL1507
(23)HHCS, 5/16-18 X 2" Bolt
4
# FO5 18 16 HH
(24)Lockwasher 5/164
# FO5 LW
(25)Locknut, 3/8-24 (Thin)2
# FO6 24 TL
(26)Packing Follower (PAIR)1
# SC2507
(27)HHCS, 3/8-24 X 1-3/4" Bolt
2
# FO8 13 12 HH
(28)Packing Ring4
# SC3007
(29)Hand Hole Cover1
# SC1501
(30)O-Ring Hand Hole Cover1
# O1001
(31)Suction Piece1
# SC1001
(32)HHCS, 1/2-13 X 1-1/2" Bolt
8
# FO8 13 12 HH
(33)Barbed Connector, 3/8" Pipe
1
# SC4507
(34)Grease Zert1
# SC8801
(35)Wing Nut, 5/16-184
# F05 18 WN
(36)Lockwasher, 5/164
# FO5 LW
(37)Set Screw, 5/16 4
# FO5 18 12 SS
(38)O-Ring Bearing Cap1
# O3601
(39)Set Screw, 10-32 X 3/8"6
# FO3 32 03 SS
