Dominator Model 12-TD Jet W Seal Pak

Home > Jet Drive Parts > Dominator and American Turbine Replacement Parts > Dominator Model 12-TD Jet W Seal Pak >

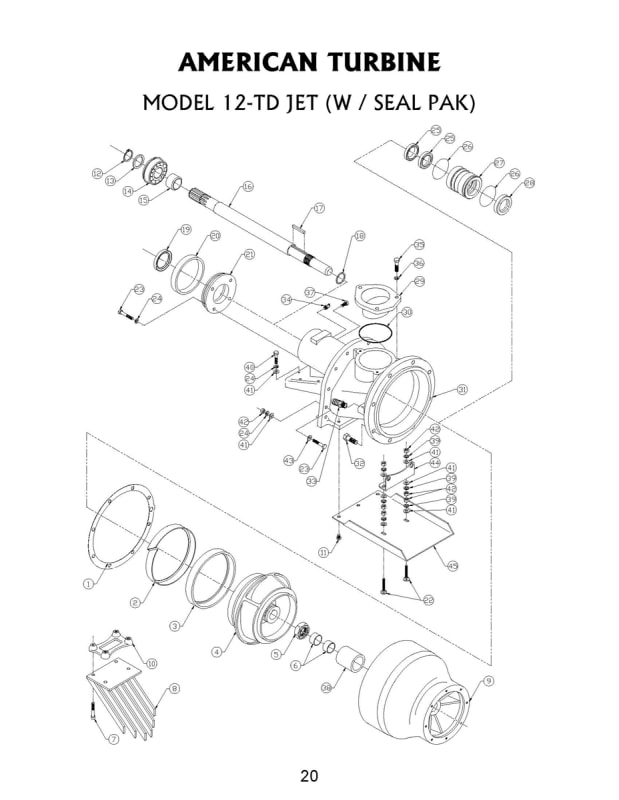

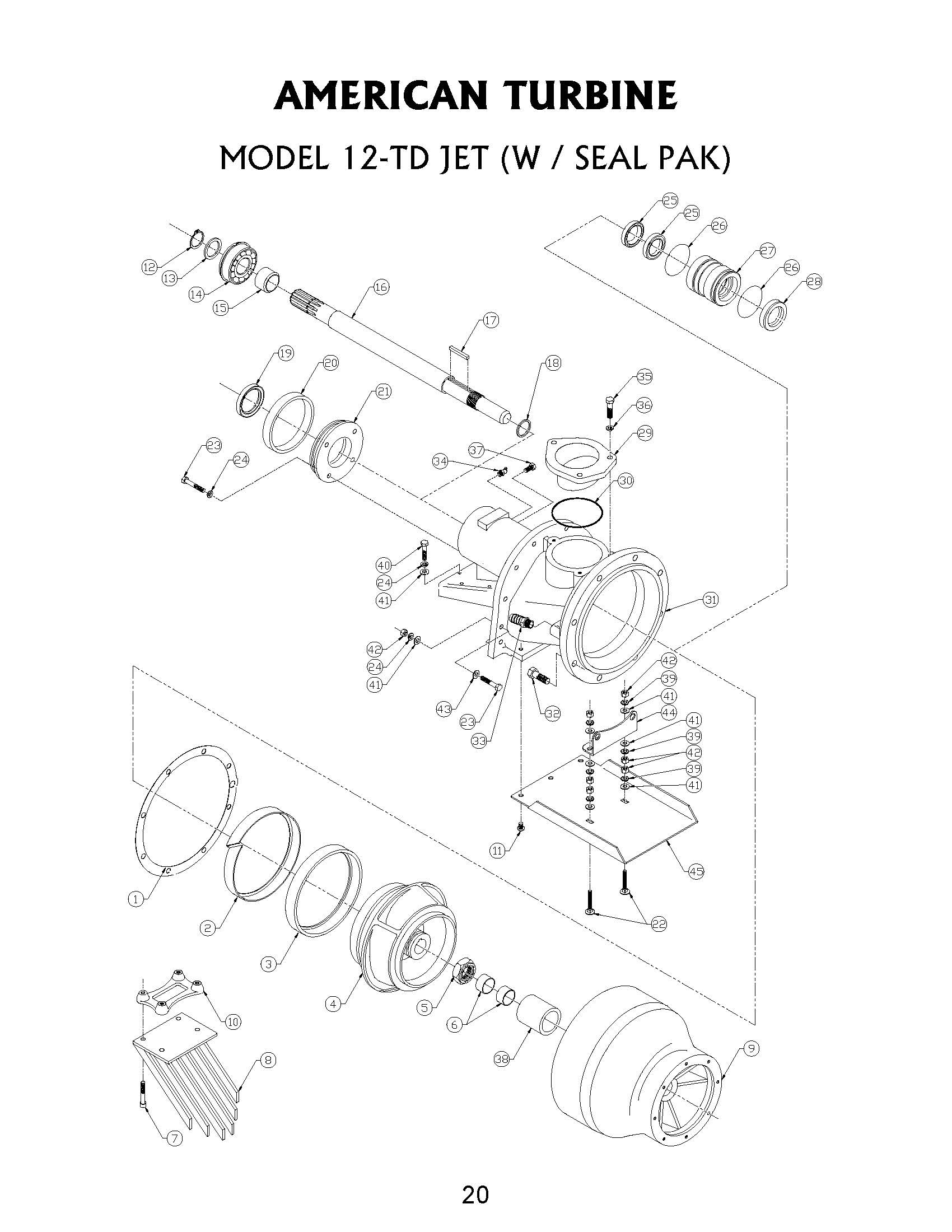

Availability: Parts Diagram
Product Code: AT-12-TD-SEALPAK

Qty:

Description

SYM.	Description	QTY.	Part Number
(1)	Bowl Gasket	1	# G2006
(2)	Wear Ring Liner	1	# WR6004
(3)	Wear Ring for Serial # Up to 14400	1	# WR5800
(3)	Wear Ring for after Serial # 14400	1	# WR5000SS
(4)	Impeller	1	# IMA***
(5)	Impeller Nut	1	# SH3507
(6)	Bowl Bearing	2	# B1505
(7)	SHCS, 5/16-18 X 1-1/4" Bolts	4	# F05 18 10 SH
(8)	Grate	1	# I4207
(9)	Bowl 10-1/4" Bolt Circle	1	# SCA9103
(10)	Grate Back-Up	1	# I4307
(11)	FHMS, 5/16-18 X 3/4" Screws	3	# F05 18 06 FH
(12)	Snap Ring	1	# SH1507
(13)	Thrust Washer	1	# SH2005
(14)	Thrust Bearing	1	# B1103
(15)	Slinger Ring	1	# SH2403
(16)	Pump Shaft	1	# SH1107
(17)	Impeller Key	1	# SH3007
(18)	Shim Kit	1	# SHK4007
(19)	Bearing Cap Seal	1	# SL1007
(20)	Engine Mount Ring	1	# SC4007
(21)	Bearing Cap Up to Serial # 17430	1	# SC2003
(22)	FHMS, 5/16-18 X 2" Screw	2	# F05 18 16 FH
(23)	HHCS, 5/16-18 X 2" Bolt	14	# F05 18 16 HH
(24)	Lock Washer, 5/16"	20	# F05 LW
(25)	Suction Seal	2	# SL1603
(26)	Seal Pak O-Ring	2	# O2103
(27)	Seal Pak Housing	1	# SH2303
(28)	Seal Pak Seal	1	# SL3708
(29)	Hand Hole Cover	1	# SC1703
(30)	Hand Hole Cover O-Ring	1	# O1003
(31)	Suction Piece	1	N/A
(32)	HHCS, 1/2-13 X 1-1/2" Bolts	8	# F08 13 12 HH
(33)	Barbed Connector, 3/8 NPT	1	# SC4507
(34)	Grease Zert	1	# SC8801
(35)	HHCS, 5/16-18 X 1-1/4" Bolt	3	# F05 18 10 HH
(36)	Lock Washer, 5/16"	3	# F05 LW
(37)	HHCS, 3/8-16 X 3/4"Bolt	1	F06 16 06 HH
(38)	Bowl Bearing, Water Lube Sleeve	1	# B1603
(39)	Star Washer, 5/16"	6	# F05 SW
(40)	HHCS, 5/16-18 X 1-1/4" Bolt	6	# F05 18 10 HH
(41)	Flat Washer, 5/16"	22	# F05 FW
(42)	Hex Nut, 5/16-18	16	# F05 18 HN
(43)	# F05 18 HN	10	# F05 AN
(44)	Ride Plate Bracket	1	# I7301
(45)	Ride Plate	1	# I6901

*NOTE* (all seal springs in the seal pack face the impeller)
